InteliVision 5.2

InteliVision 5.2

Order code: RD2IV5BXBAA

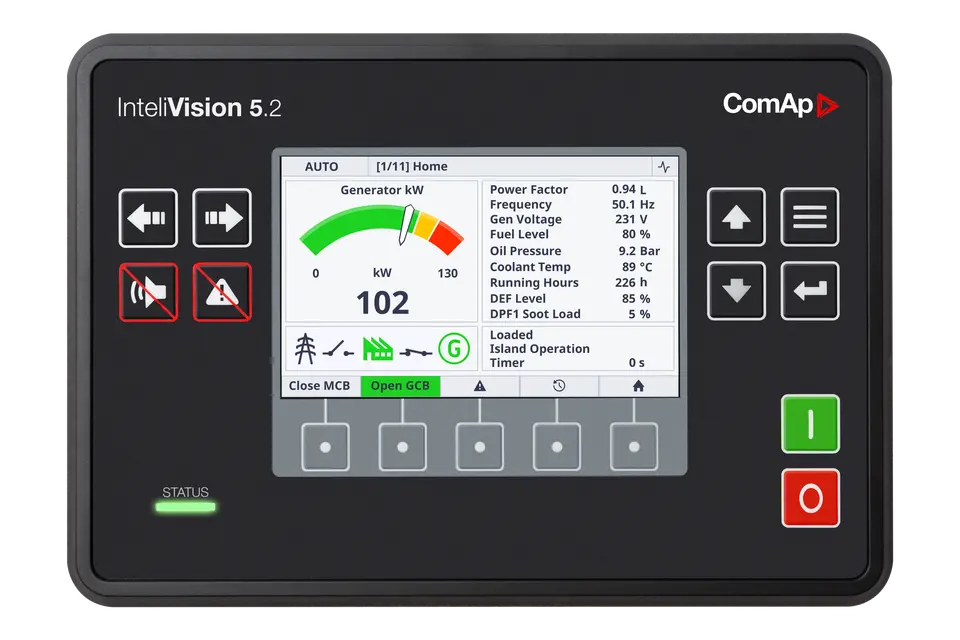

InteliVision 5.2 is an easy-to-use remote colour display for ComAp controllers, for monitoring and control of single gen-set for various applications. This intuitive plug&play solution provides comprehensive visual overview of all engine data, monitoring information and trend history.

Intuitive navigation
Trends monitoring
Simple installation & configuration
Colour display
Comprehensive data overview
Plug&play solution

InteliVision 5.2 1.8.0 Datasheet

English (11 Nov 2024)

Manuals

2 files

English (12 Nov 2024)

Software

2 files

English (24 Jul 2024)

English (30 Sep 2024)

Certifications

2 files

English (25 Jan 2023)

EU Declaration of Conformity-Displays

English (27 Nov 2023)

CAD drawings

2 files

English (29 Jan 2024)

Show resource hub for this product

Overview
Related products

Overview
Related products

The InteliVision 5.2 display is an intuitive and simple plug&play solution, ensuring comprehensive overview of all the data you require to monitor the operations of your gen-sets. The display is easy to configure and work with, including the configuration and trends monitoring of all parameters that are being monitored.

The InteliVision 5.2 offers:

Plug&play operations with auto-configuration based on specific application
Option to configure all controlled parameters according to your requirements
5" colour screen display with 800 × 480 pixels screen resolution
Easy screen customisation using InteliConfig’s Screen Editor feature
Five configurable user buttons placed under the screen
Fast and intuitive navigation
Extended trends monitoring screen for up to four channels
Multilanguage support
Integrated and easy-to-use mounting system
Broad operating temperature range from -30°C to +70°C; or from - 40°C if the device is power on above - 30°C
Front face is sealed to IP65
Communication available via Ethernet
One analog input, one binary output
The display has the same shape and cut out as the InteliGen 500 controller
Compatible with InteliGen 500, InteliGen 1000 and InteliMains 1010 controllers

Accessories

InteliGen 500

InteliGen 500 is a paralleling controller with 5" colour display for advanced diesel gen-set applications, supporting both single and multiple gen-sets running in grid-tied or island operations.

InteliNeo 5500

The InteliNeo 5500 is a microgrid controller that offers a cost-effective solution for combining traditional grid or gen-sets with renewable energy sources to create a reliable and efficient power generation system. The panel-mount design with a 5” colour TFT display is suitable for packagers and integrators who are looking to integrate clean and sustainable energy to existing power generation sites.

InteliMains 1010

InteliMains 1010 is the most advanced ComAp mains/utility/tie-breaker supervision controller for complex applications. Designed following top IT security standards to protect your operations, the InteliMains 1010 acts as a relay for mains protection and helps synchronise your gen-sets to the mains/utility for switchgear applications and critical infrastructure installations, such as datacentres, hospitals or banks.

InteliGen 1000 + IV 5.2 StarterKit

A StarterKit for InteliGen 1000 controller with InteliVision 5.2 display.

InteliGen 1000

InteliGen 1000 is the most advanced ComAp gen-set controller for multiple gen-sets with paralleling operations, with or without connection to the mains or other source. Intended primarily for switchgear applications, this high-end controller will help you control and monitor demanding projects with critical infrastructures such as datacentres, hospitals and banks.
